Git Essentials Training

by JOSA



Presenters:
Anas Al Hamdan @AnasAlhamdan
Mamoun Saudi @Aqabawe
Yazan Dabain <yazan.dabain@gmail.com>

The Problem

  • Codebase is undergoing frequent changes. It is easy for something to go wrong.
  • How do you review the codebase history?
  • How do you handle changes done by different people working on the same files?
  • How do you make sure every server and developer has the same version across?

Possible Solutions

  • Copy and paste?    ✖
  • FTP server?    ✖
  • Version control system?    ✔

Version Control Systems

  • Allows you to keep a history of every change within a project.
  • Allows multiple people to collaborate on the same project, without evil stuff happening.
  • Allows multiple people to make sure that when they are working with a specific version they have the same code all around.

Different Systems of Version Control

  • Local version control systems
  • Centralized version control systems
  • Distributed version control systems

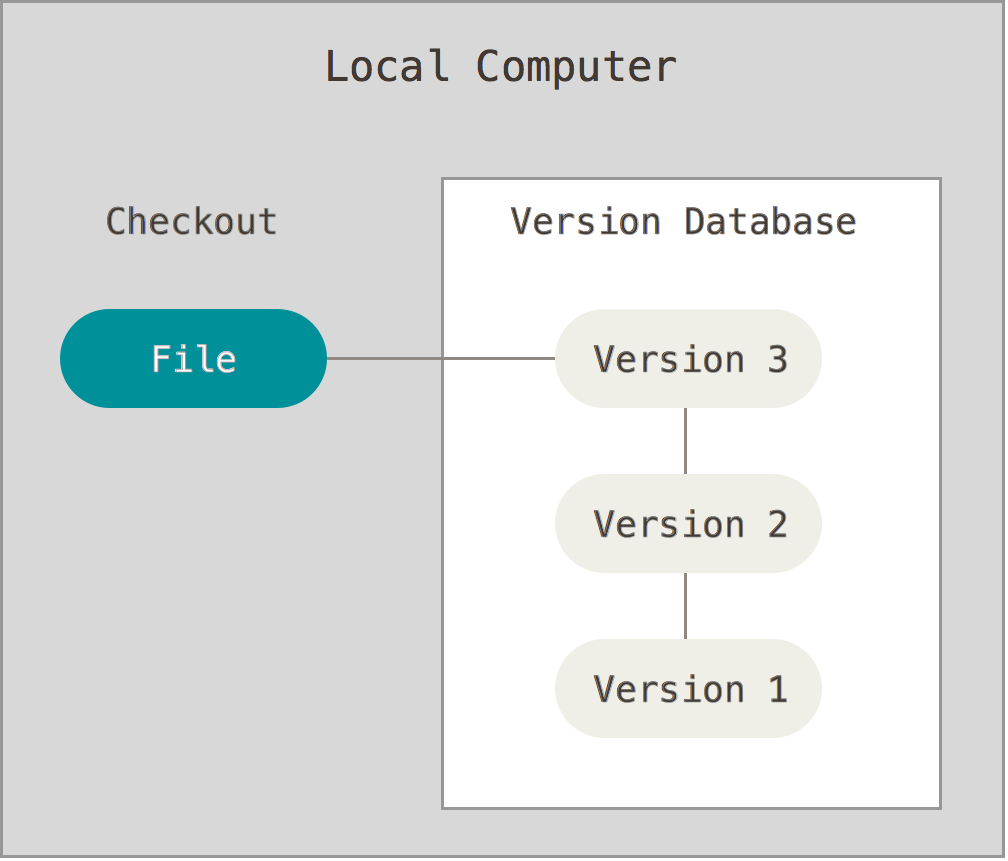

Local Version Control Systems

Simple database that keeps all changes to files under version control.

Example system: RCS

RCS keeps patch sets and recreates what any file looked like at any point in time by adding up all the patches.

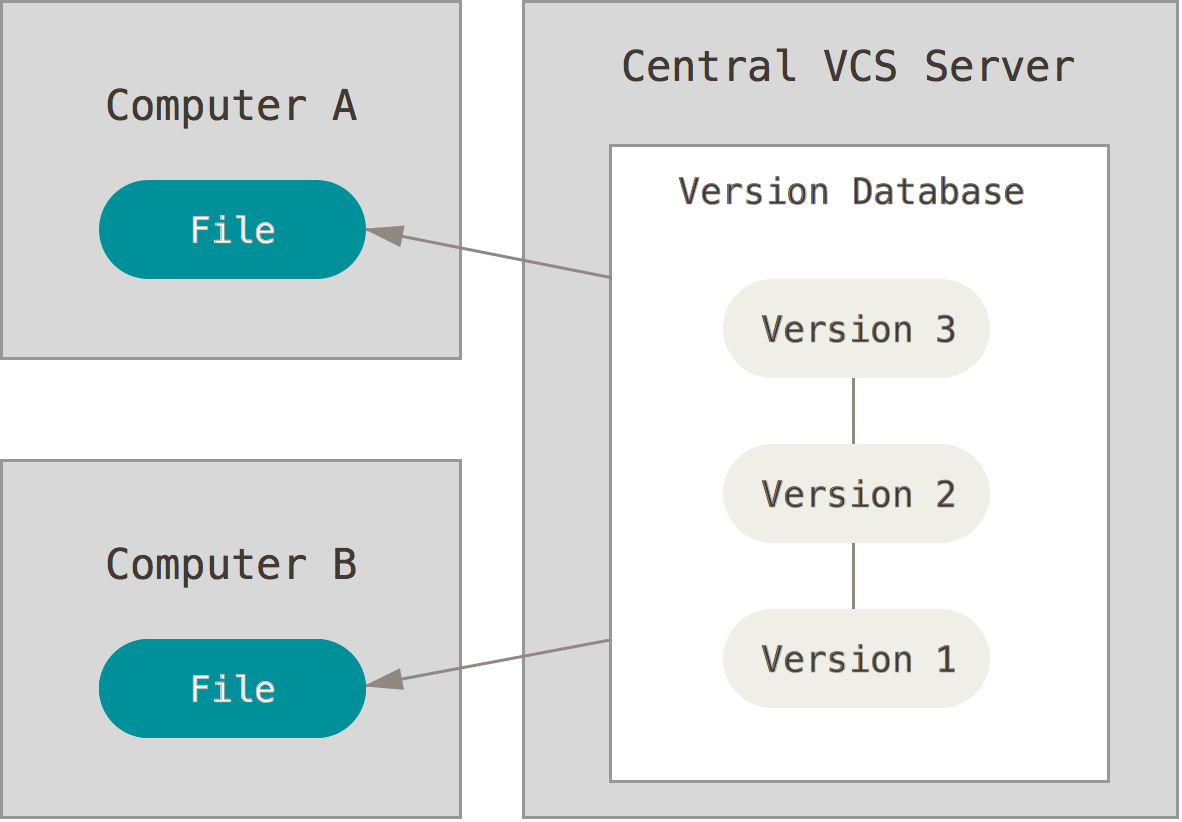

Centralized Version Control Systems

  • Allows collaboration between different people.
  • A single server that contains all the versioned files.
  • A number of clients that check out files from that central place.
  • Main disadvantage is that CVCS have a single point of failure.
  • Example systems: SVN, CVS.

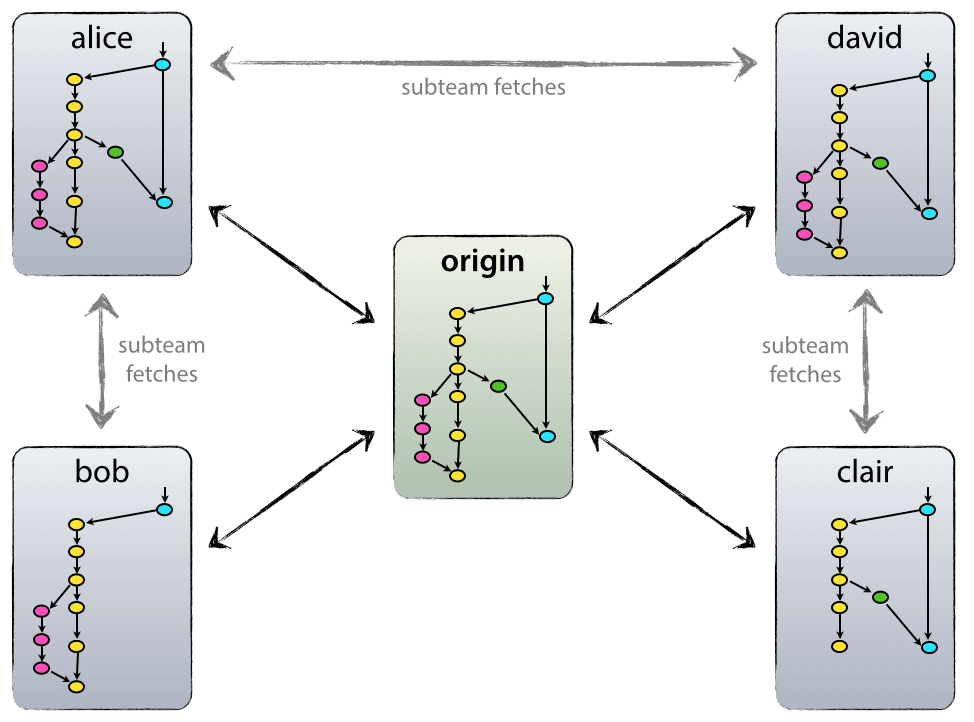

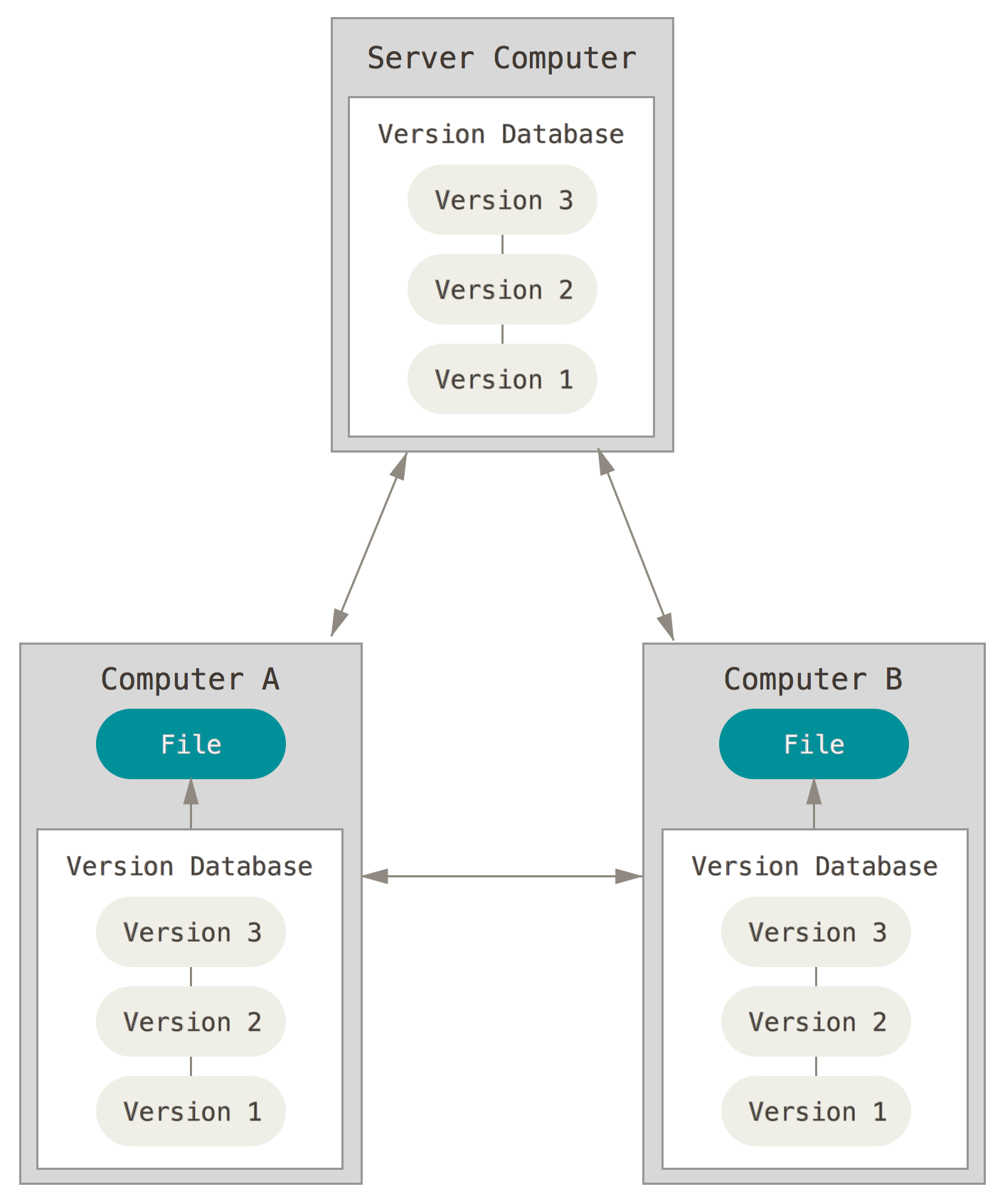

Distributed Version Control Systems

Users fully mirror repository.

A failed server can be restored from any client's mirror.

Example systems: git, mercurial.

Installing git

To install git on Linux:

apt-get install git
yum install git
pacman -S git

To install git on Mac:

brew install git
http://git-scm.com/download

To install git on Windows:

http://git-scm.com/download

git First-Time Configuration

To setup user name:

$ git config --global user.name "Absi Gittawi"

To setup email:

$ git config --global user.email absi.gittawi@jordanopensource.org

To list all configurations:

$ git config --list

Starting with git

Repository: in simple words, a project's folder. A repository contains all of the project files, each file's revision history, user configuration, and git data.

To initialize a repo (short for repository) in an existing folder:

$ git init

To initialize a repo in a new folder:

$ git init <project-folder>

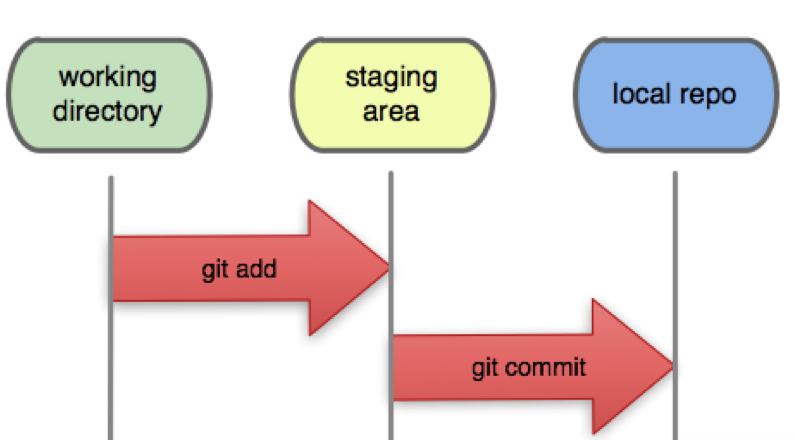

The Three States

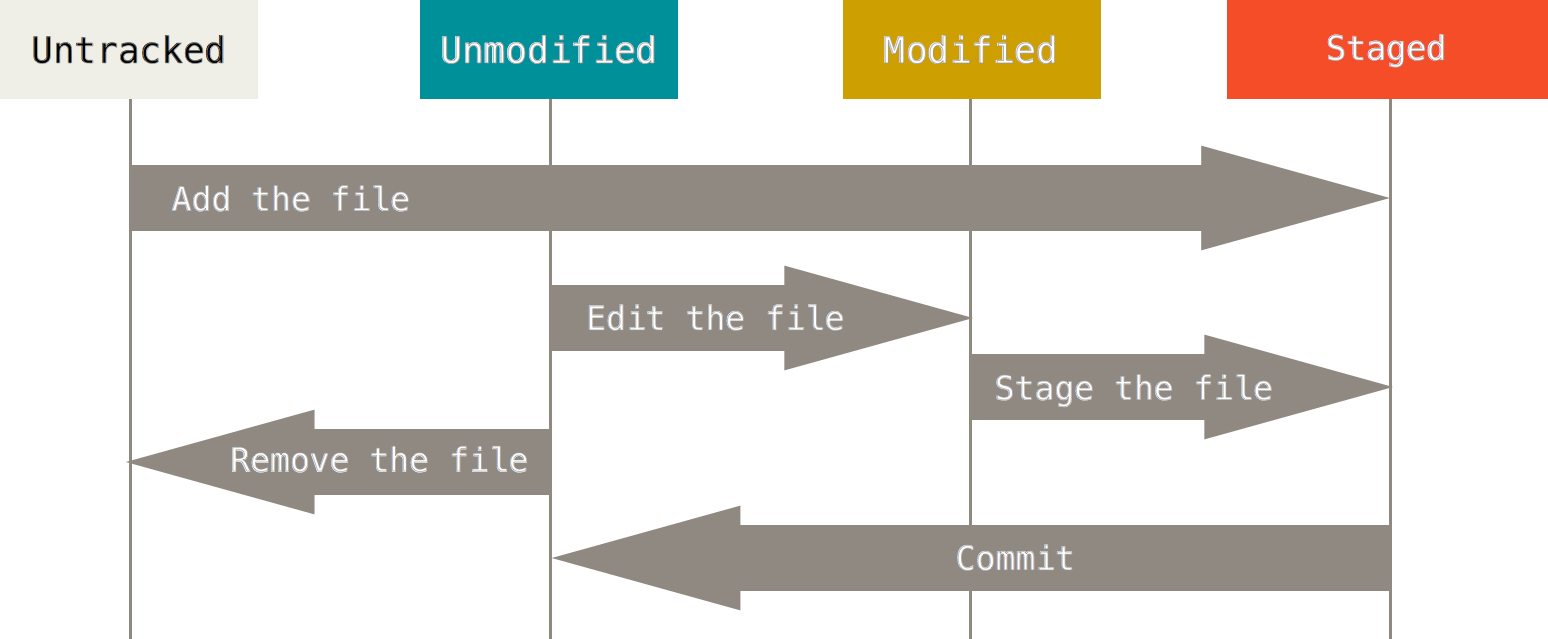

Files Life Cycle

Files Status

$ git status
On branch master
nothing to commit, working directory clean
  • Clean working directory (no tracked and modified files)
  • The branch you’re on
  • If you diverged from the same branch on the server

git add

To add a single file:

$ git add <file-name>

To add all files in current folder and subfolders:

$ git add .

To add hunks (tracked files only):

$ git add -p

git reset

To reset a single file:

$ git reset <file-name>

To reset all changes files in current folder and subfolders:

$ git reset .

To reset hunks:

$ git reset -p

git diff

To see what changed but not has not yet staged:

$ git diff

To see what is staged so far:

$ git diff --cached
$ git diff --staged

Committing Changes

To commit:

$ git commit

This launches a text editor (can be set using core.editor config).

To commit and enter commit message on command-line:

$ git commit -m "<commit-message>"

To skip staging area, add and commit every tracked file:

$ git commit -am "<commit-message>"

Browsing History

$ git log
commit <commit-sha1>
author: Absi Gittawi <absi.gittawi@jordanopensource.org>
date:   fri feb 13 20:19:08 2015 +0300
    <commit-message>
$ git log -p

Working with branches

Branches in git:

  • Incredibly lightweight
  • References to a specific commit -- nothing more
  • A branch is a pointer that moves forward with every new commit
  • The default branch name in git is master

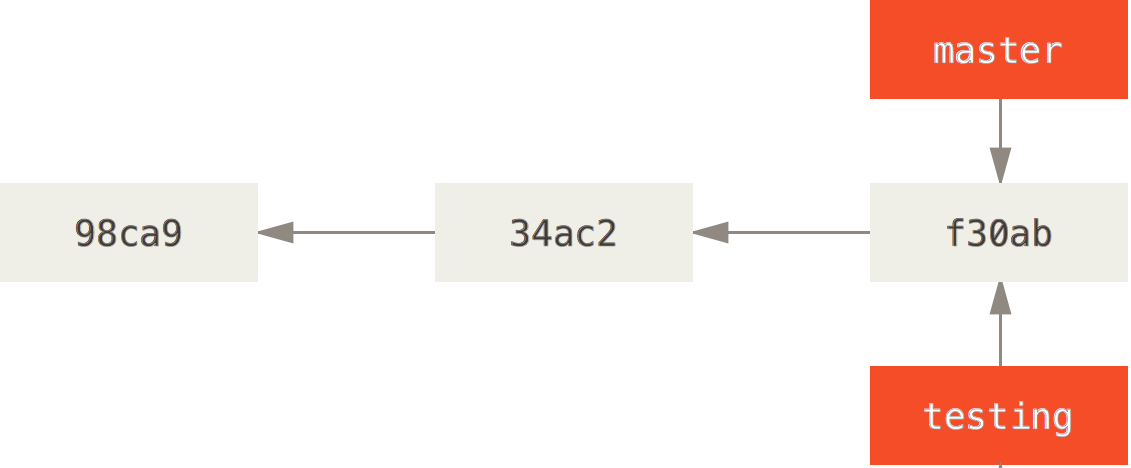

Working with branches (Cont.)

Creating a new branch:

$ git branch <branch-name>

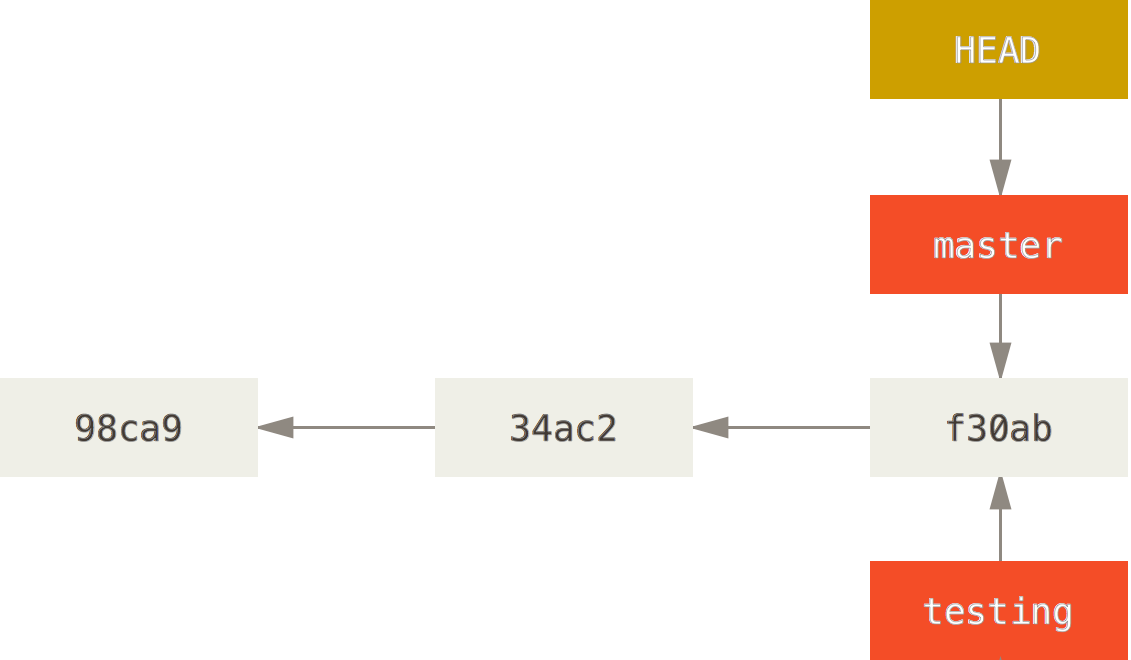

Working with branches (Cont.)

What branch am I on?

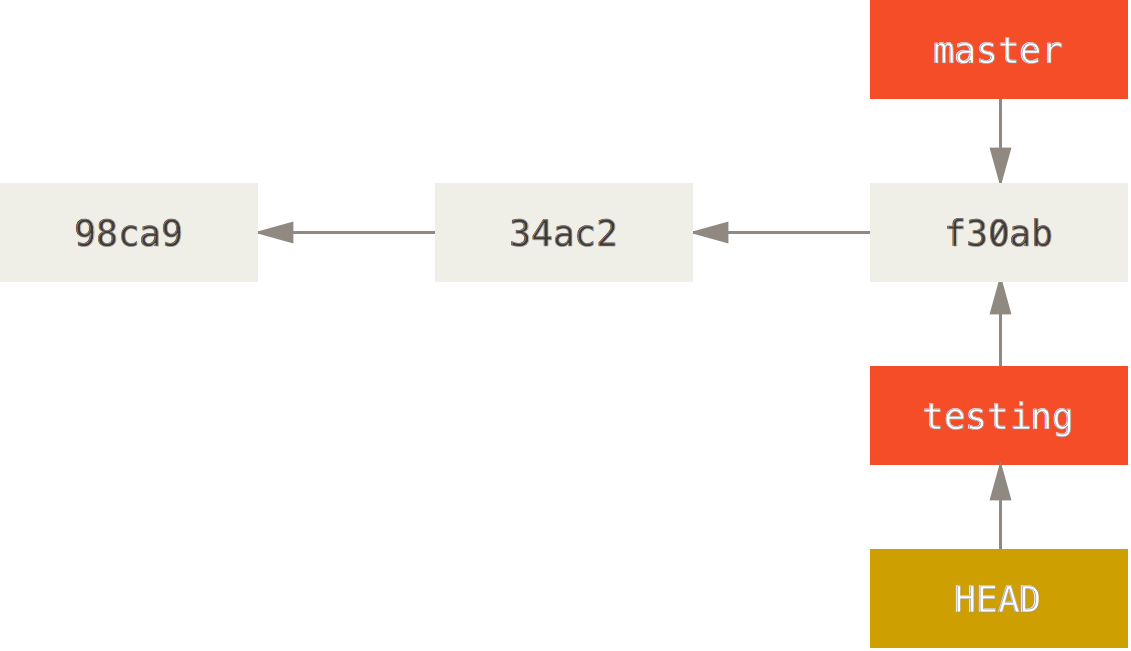

Working with branches (Cont.)

Switching branches:

$ git checkout <branch-name>

Merging branches

Merging branches in git:

  • Combines work from two different branches
  • Creates a special commit that has two unique parents

Switch to destination branch:

$ git checkout <destination-branch-name>

Merge the commits from the other branch:

$ git merge <branch-name>

Merge Conflicts

Occasionally conflicts happen:

  • Same part of the same file changed differently in the two branches you’re merging
  • Git won’t be able to merge the branches cleanly
  • You will have to resolve the conflict manually
$ git merge <bug-fix>
Auto-merging index.html
CONFLICT (content): Merge conflict in index.html
Automatic merge failed; fix conflicts and then commit the result.

Merge Conflicts (Cont.)

<<<<<<< HEAD:index.html

=======

>>>>>>> iss53:index.html

After you resolve the conflicts, add and commit the files

Working with others

  • Web-based Git repository hosting services
  • Remote branches
  • Cloning
  • Hosting Git on your server

Cloud Git hosting

  • Allow you to store your code in a safe place
  • Allow other developers to join you
  • They provide other related tools like permissions control, Wikis and issues tracking
  • eg: GitHub, Bitbucket

Creating a new repository

Adding a remote repository

Remote repositories are versions of your project that are hosted on the Internet or network somewhere.

  • You can have several repositories
  • You may have different permissions on each repository

Adding a remote repository

$ git remote add [remote_name] [remote_address]

Removing a remote repository

$ git remote remove [remote_name]

Publishing your code

Pushing your local changes to a remote repository

$ git push -u [remote_name] [branch_name]

Checking changes on the remote server

Fetch

$ git fetch [remote_name]

checkout

$ git checkout -b [local_branch_name] [remote_name]/[branch_name]

Merge

$ git merge [branch_name]

Absi is lazy, so we are

pull => fetch and merge

$ git pull [remote_name] [branch_name]

Cloning

Clone a repository into a new directory

$ git clone [remote_name] [direcotry_name]

Hosting Git on your server

              $ mkdir test_repo.git
              $ git init --bare --shared

For more info go to: http://git-scm.com/book/en/v2/Git-on-the-Server-Getting-Git-on-a-Server

Undoing Things

$ git checkout <commit>
$ git checkout B-SHA

Undoing Things

$ git reset <commit>
$ git reset --soft B-SHA

Undoing Things

$ git revert <commit>

E is a new commit that undoes the changes made in commit D*

Tags

Tags are pointers to commits. They don't move with time.

Typical usage is to mark release points and versions.

To create a new tag:

$ git tag <tag-name>

To list available tags:

$ git tag

Tags

Tags

Stash

Problem: you are in the middle of something, and Absi, the QA team head, comes rushing. "There is an urgent bug that needs to be resolved now!".

You need to stop what you're doing and make a change on the production version.

You try to checkout to the latest release tag, but stupid git is yelling:

error: Your local changes to the following files would be overwritten
  by checkout:
    index.html
  Please, commit your changes or stash them before you can switch
  branches.
  Aborting

Stash

Stashing takes the dirty state of your working directory and saves it on a stack of unfinished changes that you can reapply at any time.

Result is an empty working directory that you can restore when you are ready.

Stash

To stash your changes:

$ git stash
$ git stash save
$ git stash save <message>

To restore stashed changes:

$ git stash pop
$ git stash apply

To see available stashes:

$ git stash list

Cherry-pick

Cherry picking is applying the changes from only one commit rather than having all the changes from some branch.

The need for this arises in different situations:

  • A fix has been applied on one branch, but the branch is still in a development state and you need to apply it to the stable branch.
  • You want to test a feature someone has developed, but it only exists in a remote branch which is woefully out of date.

Cherry-pick

To cherry-pick commit C:

$ git cherry-pick C

Git Aliases

Absi is a lazy programmer and he likes making efficient use of his finger movements.

Git aliases enable having shortcuts for git commands.

To add a new alias:

$ git config --global alias.<alias> '<command>'

Or you can make the changes in ~/.gitconfig file:

$ vim ~/.gitconfig

Git Aliases

Examples:

$ git config --global alias.st 'status'
$ git config --global alias.co 'checkout'
$ git config --global alias.br 'branch'
$ git config --global alias.unstage 'reset HEAD --'

Some more interesting examples:

$ git config --global alias.lg 'log --color --graph --pretty=format:'%Cred%h%Creset -%C(yellow)%d%Creset %s %Cgreen(%cr) %C(bold blue)<%an>%Creset' --abbrev-commit'
$ git config --global alias.visual '!gitk'

Git Blame

Absi has been debugging a problem since the morning, and has just found the source of it in the code.

He is wondering why this code exists there and who put it in.

Git blame is a command to point out who changed which lines in a file, and in what commit.

Git Blame

To see blame on some file in git:

$ git blame <file>

Example:

<commit> (<author>    <date>)     file line
84d32bf7 (Ramsay Allan Jones      2013-04-27 20:19:47 +0100 617) int main(int argc, char **av)
8e49d503 (Andreas Ericsson        2005-11-16 00:31:25 +0100 618) {
84d32bf7 (Ramsay Allan Jones      2013-04-27 20:19:47 +0100 619)        const char **argv = (const char **) av;
4dd47c3b (Steve Haslam            2009-01-18 13:00:10 +0100 620)        const char *cmd;
231af832 (Linus Torvalds          2006-02-26 12:34:51 -0800 621)
e37c1329 (Nguyễn Thái Ngọc Duy    2010-08-05 21:40:35 -0500 622)        startup_info = &git_startup_info;
e37c1329 (Nguyễn Thái Ngọc Duy    2010-08-05 21:40:35 -0500 623)

gitignore

gitignore is a way to intentionally specify files not to track.

To use it, create a .gitignore file in a folder under a git repo and a line for each pattern you want to ignore. Then commit it and push it for all users to use it.

Files already tracked by git are not affected.

To stop tracking a file that is currently tracked, use git rm --cached.

gitignore

Example file for C/C++ based projects:

$ cat .gitignore
bin/
debug/
*.o
*.sln

Example file for Java based projects:

$ cat .gitignore
*.class
*.jar
*.war

# you can negate the rule to include a file despite previous rules
!stable.v1.1.jar

Git Rebase

A rebase is a different way to integrate changes from one branch to another.

A merge command uses three-way merge between the two latest branch snapshots and the most recent common ancestor of the two, creating a new commit (the merge commit).

A rebase, on the other hand, integrates each change introduced by a commit as a new commit in the target branch.

Git Rebase

$ git rebase -i master

$ git checkout master
$ git merge feature

Git Rebase

To rebase:

$ git rebase <branch>

An interactive rebase gives you the opportunity to alter individual commits in the process rather than blindly moving all of the commits to the new base.

$ git rebase -i <branch>

Interactive Rebase

pick 9b6dbf3 Added rebasing
pick 2106a4e Continue rebasing

# Rebase aced1c4..2106a4e onto aced1c4
#
# Commands:
#  p, pick = use commit
#  r, reword = use commit, but edit the commit message
#  e, edit = use commit, but stop for amending
#  s, squash = use commit, but meld into previous commit
#  f, fixup = like "squash", but discard this commit's log message
#  x, exec = run command (the rest of the line) using shell
#
# These lines can be re-ordered; they are executed from top to bottom.
#
# If you remove a line here THAT COMMIT WILL BE LOST.
#
# However, if you remove everything, the rebase will be aborted.
#
# Note that empty commits are commented out

Rebase vs Merge

Merging produces commits which can help you in tracking history more, but can also be noisy.

Rebasing provides a way to have a linear line of history.

Rebasing can be a destructive tool.

Rebase should not be used on public branches.

Git Bisect

Let’s say you just pushed out a release of your code to a production environment, you’re getting bug reports about something that wasn’t happening in your development environment, and you can’t imagine why the code is doing that.

Git bisect is a tool to do a binary search on your codebase to find a buggy commit.

Git Bisect

To start the bisect operation:

$ git checkout <bad-branch>
$ git bisect start
$ git bisect bad
$ git bisect good <good-branch>

Clone this repo for exercise: https://github.com/rbast/bisect-me

Git Bisect

You can automate git bisect using a script.

You need a script to exit with a zero for a good state and a non-zero for a bad state.

$ git bisect start <bad-branch> <good-branch>
$ git bisect run <script-file>

Submodules

Submodules are git repositories within git repositories!

You use submodules to include different projects that are dependant on each other.

Submodules

To create a submodule:

$ git submodule add <repository>

When you first clone a repository, you need to initialize submodules and update:

$ git submodule init
$ git submodule update

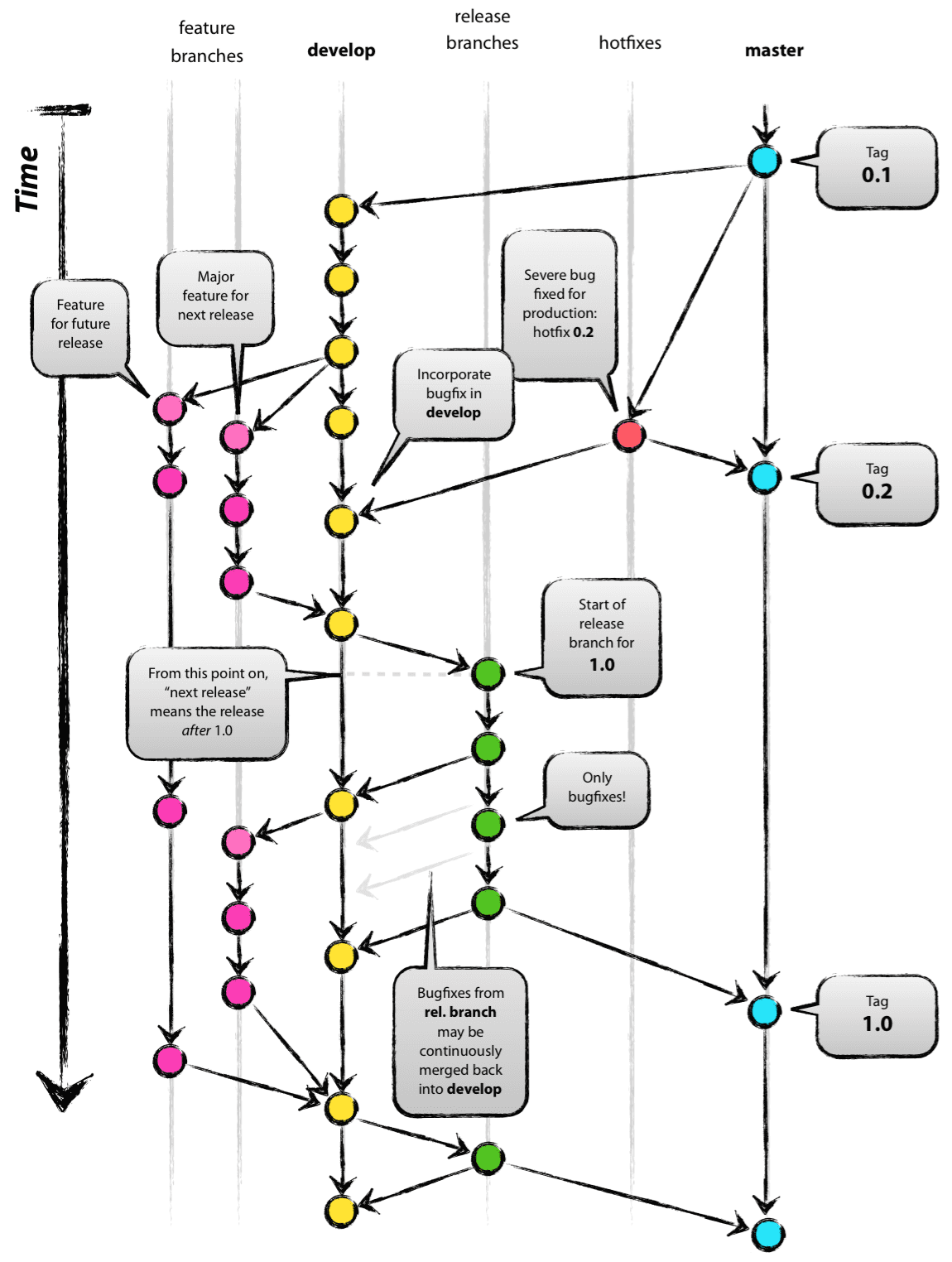

Tested Git Workflows

Git Hooks

Hooks are little scripts that are triggered by git at specific events.

Some of the most interesting events are:

  • pre-commit
  • prepare-commit-msg
  • commit-msg
  • post-commit
  • post-checkout

Git Hooks

Pre-commit hook example to check php files syntax:

<?php

$path = "*** THE ROOT DIRECTORY OF YOUR PHP FILES ***";
$output = array();
exec("find {$path} -name '*.php' | xargs -n1 php -l | grep -v 'No syntax errors detected'", $output);
exit(count($output) > 0 ? 1 : 0);

Git Hooks

Prepare-message-commit hook example to include issue number in commit message:

#!/usr/bin/env python

import sys, os, re
from subprocess import check_output

# Collect the parameters
commit_msg_filepath = sys.argv[1]
if len(sys.argv) > 2:
    commit_type = sys.argv[2]
else:
    commit_type = ''
if len(sys.argv) > 3:
    commit_hash = sys.argv[3]
else:
    commit_hash = ''

print "prepare-commit-msg: File: %s\nType: %s\nHash: %s" % (commit_msg_filepath, commit_type, commit_hash)

# Figure out which branch we're on
branch = check_output(['git', 'symbolic-ref', '--short', 'HEAD']).strip()
print "prepare-commit-msg: On branch '%s'" % branch

# Populate the commit message with the issue #, if there is one
if branch.startswith('issue-'):
    print "prepare-commit-msg: Oh hey, it's an issue branch."
    result = re.match('issue-(.*)', branch)
    issue_number = result.group(1)

    with open(commit_msg_filepath, 'r+') as f:
        content = f.read()
        f.seek(0, 0)
        f.write("ISSUE-%s %s" % (issue_number, content))

References
